Garage Audio Room, the "Gaincave"

Before (13 June 2011)

Latest progress (18 Nov 2011)

To construct a dedicated Audio room with sensible acoustics and aesthetics for under $500.

This is a journey in constructing a dedicated listening room. The room is a 1-car garage which needs major cleanup.

Build discussions is at StereoNet Australia.

I tried playing the S9R dipoles in the garage. To my surprise it sounded very good despite tin roof and door. Later measurements revealed RT60 of 250ms, which is *more dead* than my living room (400ms). Looking at all the "junk" in the garage it will be a long journey, but acoustically it's very good already! Target room reverb for dipole loudspeakers are about 300ms - 500ms.

Major cleanup and update
- Curtains
- Lighting and automatic turn-on sensor

Cost tracking

Heater - $60
Curtain accessories - $110
Downlight kit - $40
Automatic light sensor - $15
Total so far = $225
Target max = $500

S18 - DSP 3-way 100dB Econowave

The goals of these speakers are:
- Small form factor (24cm baffle width)
- Constant directivity to 2.5khz
- High sensitivity, 94+ dB depending the woofers used.

Waveguide: FaitalPro STH100
Compression driver: B&C DE250
Woofers: PRV Audio 8MR500-PhP-4 or B&C 8PS21
Subwoofer: 2x Eminence Beta 12A

Follow the discussions at StereoNet Australia here.

S17 - Constant Directivity Dipoles

While the S16 provides smooth directivity, they are lacking rear radiation. In this iteration I want real dipole radiation front and back, and uniform to very high frequencies. This can only be done with extemely short front-to-back distance.


The "tweeters" used areTandBand 3" full-range. They allow three things to happen:

- Dipole peak to occur very high in the frequency range, allowing constant directivity
- Very open rear chamber for good rear frequency response
- Low crossover frequency.


The directivity plot was measured indoor so there is room for improvement when I take it for outside measurement later.

Follow the discussion at DIYAudio.

These are respectable uniform dipolar radiation, impossible to achieve with traditional methods like back to back dome tweeters.

The tradeoff is high frequency resolution of the 3" fullrange drivers.

Visits and GTGs

Social events are part of a hi-fi hobby and as an amateur enthusiast I had been very lucky to enjoy the company of friendly visitors and as a guest to others.

GTGs (Get-Together) and Events

PSE-144 GTG - 27/9/2015
After hearing unity variants before (original unities, Yorkville) it's great to hear these PSE-144 from Red Spade Audio at Joz' house. I think they are the 'Ferraris of loudspeakers'.

Redefy TWO GTG - 2/9/2015
Spectacular speakers built by Henry at Martin's place. They follow the Econowave philosophy using FaitalPro drivers and waveguides.

Same64 (Marian) DIY speakers - 1/9/2015
Listened to great passive build by Marian. 12" subwoofers, 5" TangBand metal fullrange and small Dayton AMT

2013 Melbourne Audio Show - 18/10/13

Great event, and even better than the last 2 year. Beautiful venue.
I was most impressed with the build of Kyron Kronos. Although acoustically it's not the latest generations of dipoles (like lx521, Nao Note) there was definitely nothing wrong with the sonics of these loudspeakers.

Red Spade S3 GTG- 20/1/13
Measured S3 Unity Horn prototype. Excellent directivity to ~250hz !  I can't live with the size, unfortunately.

Matt's Hoyt-Bedrford - 22/7/2012
Had a great evening at Matt's listening to Hoyt-Bedford fullrange driven by valve amp and Kuzma + SOTA turntable.

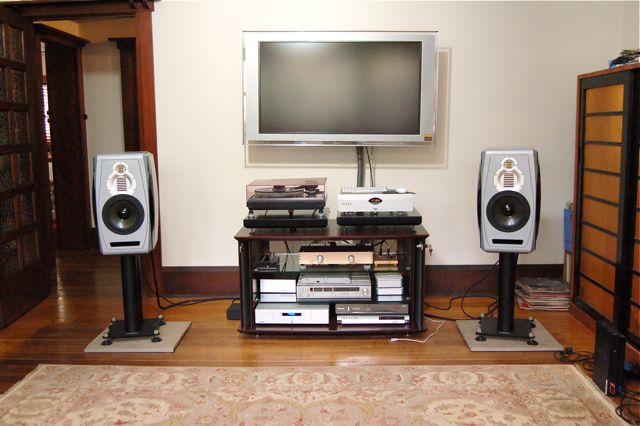

Musikelectronic Geithain 901K (Pure Music Group) - 24/6/2012
Attended GTG at Pure Music Group Mornington.

These are exceptional speakers. They actually managed to build Cardioid radiating speakers from 30 to 250hz. This is not an easy task.

LINN high-end system (Warren's) - 3/6/2012
At Patterson Lakes, which is very close from my place.

-->Synergy Horns GTG - 5/11/2011
Measurements and listening to various implementation of Unity Horns. We had Yorkville Unity by Tom Danley and Paul's DIY versions. They sounded great.

Report at StereoNet Australia.

The Australian Audio and AV Show

October 21st 2011

Roger's Unity Horns - 21/5/2011
My second visit listening to his Unity Horn system. These are extreme-SPL setup, the horns themselves are 100+db utilising compression drivers and 8 Misco midranges.

2x Unity Horns. Real ones from Tom Danley and only two in Australia (!)
2x 18" AE woofers, ported
2x 12" woofers in bandpass configuration
1x 18" Maelstrom, sealed

The system would easily power a hall and I don't have to mention the ease of which they play loud passages.

Linkwitz Orion - 25/2/2011
